Overview

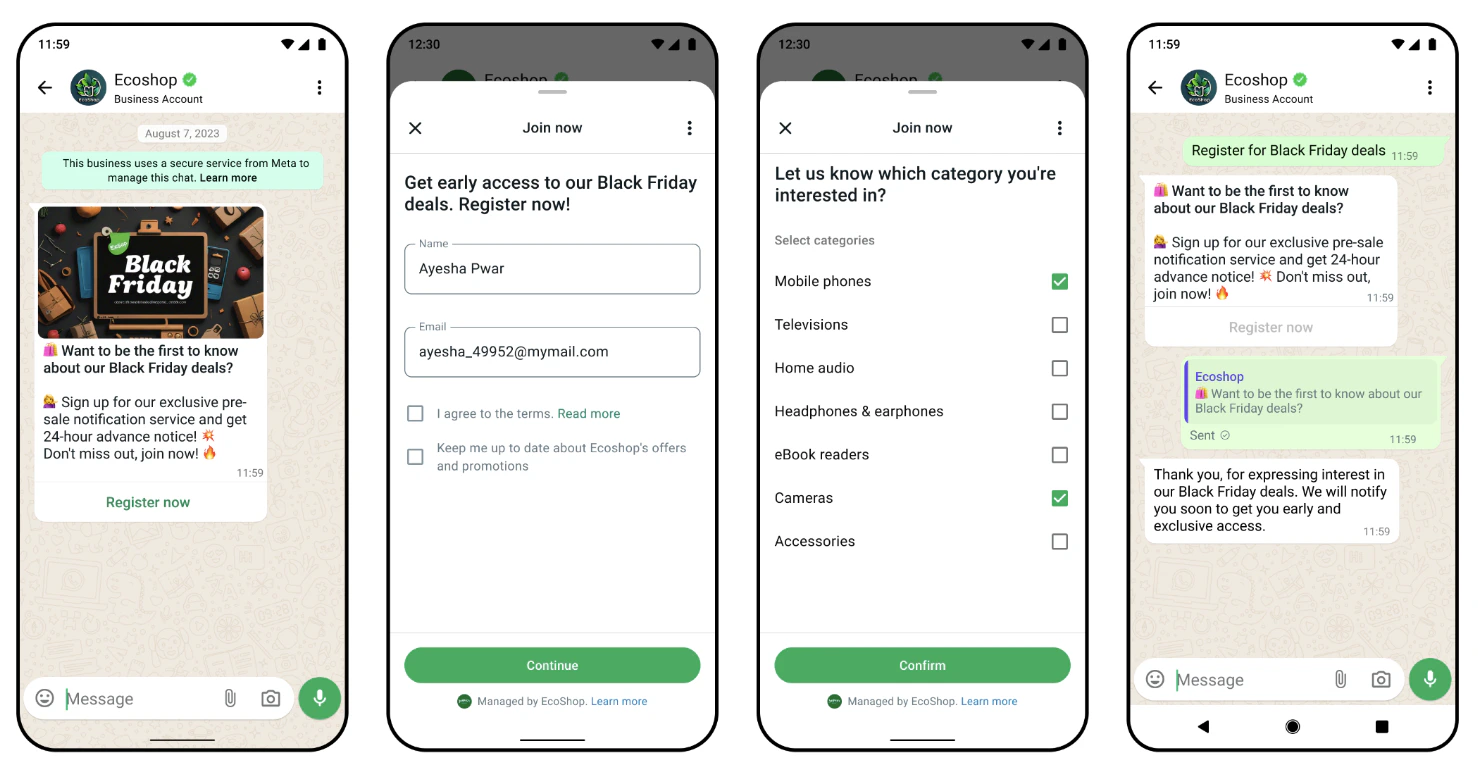

The Flow component sends a WhatsApp Flow as an interactive message with a CTA button. When the user taps the button, a multi-screen form opens inside WhatsApp — they fill it in and submit it, all without leaving the chat. Flows are built in WhatsApp Manager (not in Lua). The agent just needs to know the Flow ID to send it.
WhatsApp only — This component only works on WhatsApp. On other channels, the raw ::: block will be sent as plain text.

​
Format

::: flow
flow_id=<FLOW_ID>
flow_cta=<Button text>
body=<Message body shown above the button>
:::

​
Required Fields

FieldDescription
flow_idThe Flow ID from WhatsApp Manager (e.g. 1234567890)
flow_ctaText on the CTA button (max 30 characters, no emoji)

​
Optional Fields

FieldDescription
bodyMessage body text shown above the CTA button. Falls back to the text outside the ::: block if omitted.
headerHeader text shown above the body
footerFooter text shown below the body
screenThe screen ID to open first (defaults to the flow’s entry screen)
The parser is flexible — it accepts = or : as separators, with or without spaces or quotes around values. All of these work:
flow_id=123
flow_id = 123
flow_id: 123
body="Hello world"
body='Hello world'
body = Hello world

​
Examples

​
Simple — OTP / Password Entry

Please tap below to securely enter your verification code.

::: flow
flow_id=9876543210
flow_cta=Enter Code
body=Tap to enter your verification code securely
:::
The user sees a message with a “Enter Code” button. Tapping it opens the flow form where they can type their code in a password field — hidden from the chat history.
::: flow
flow_id=1122334455
flow_cta=Book Appointment
body=Select your preferred date and time
header=Schedule a Visit
footer=Available Mon-Fri, 9am-5pm
:::

​
With Specific Start Screen

::: flow
flow_id=5566778899
flow_cta=Start Survey
body=We'd love your feedback! It only takes 2 minutes.
screen=FEEDBACK_SCREEN
:::

​
How the Response Works

When the user completes the flow and submits, the agent receives a message like:
User completed a WhatsApp Flow. Submitted data:
- name: John Smith
- email: [email protected]
- appointment_date: 2025-03-15
(flow_token: abc123)
The agent can then process the submitted data as normal conversation context.
Password/passcode fields are automatically excluded from the WhatsApp chat summary UI (since Flows v5.1). However, the submitted values are still included in the webhook payload and will appear in the agent’s conversation history.

​
Handling Sensitive Data

WhatsApp hides password/passcode fields from the chat summary UI, but the raw values still arrive in the webhook and get stored in conversation history. There are two approaches depending on your security needs:

​
Option A: Preprocessor masking (basic)

Use a preprocessor to mask sensitive fields before the agent sees the current message. Note that the original values may still appear in stored conversation history.
// Detect flow response messages and mask fields matching sensitive patterns
const SENSITIVE_PATTERNS = [/password/i, /passcode/i, /secret/i, /pin/i, /otp/i, /code/i];

// Replace values with [REDACTED] before the agent processes the message
For truly secure handling (OTP validation, password checks), use a flow with a data exchange endpoint. The sensitive data is validated server-side inside the flow before it closes. The complete payload only sends the validation result (e.g., "otp_verified": true), so the raw value never reaches the agent or conversation history. This requires setting up an encrypted endpoint — see WhatsApp Flows endpoint documentation for details.

​
Configure

Tell your agent in Persona or Skill Context which flow to use and when:
context: `
  When the user needs to enter their verification code,
  send them the secure input flow:

  ::: flow
  flow_id=9876543210
  flow_cta=Enter Code
  body=Tap to securely enter your verification code
  :::

  After they submit, you'll receive their input as
  "User completed a WhatsApp Flow. Submitted data:"
  followed by the form fields.
`

​
Finding Your Flow ID

  1. Go to WhatsApp Manager > Account tools > Flows
  2. Click on your flow
  3. The Flow ID is shown in the URL or flow details
Only Published flows can be sent to users. Draft flows can be sent for testing using the API with mode=draft.

​
Best For

  • Appointment booking forms
  • Lead generation & sign-up forms
  • Customer feedback surveys
  • Order details collection
  • Any structured data collection that benefits from a form UI
  • OTP / password / PIN entry (hidden from WhatsApp chat UI; for full security, use a flow with endpoint)
